DS 90

And our youth models offer safety features that allow you to lead by example. To help ensure a safe and supervised riding experience, our youth ATV engines will not start without the ignition key.

In addition to the factory-imposed restrictions, parents can limit a young rider's speed with the built-in throttle limiter. Thus ensuring safety for even the youngest ATV enthusiasts.

For added safety, our youth ATVs come with factory restricted maximum speeds. The maximum speed is 10 mph (16 km/h) on the DS50 and 15 mph (24 km/h) on the DS90 2-stroke and DS90 4-stroke.

details

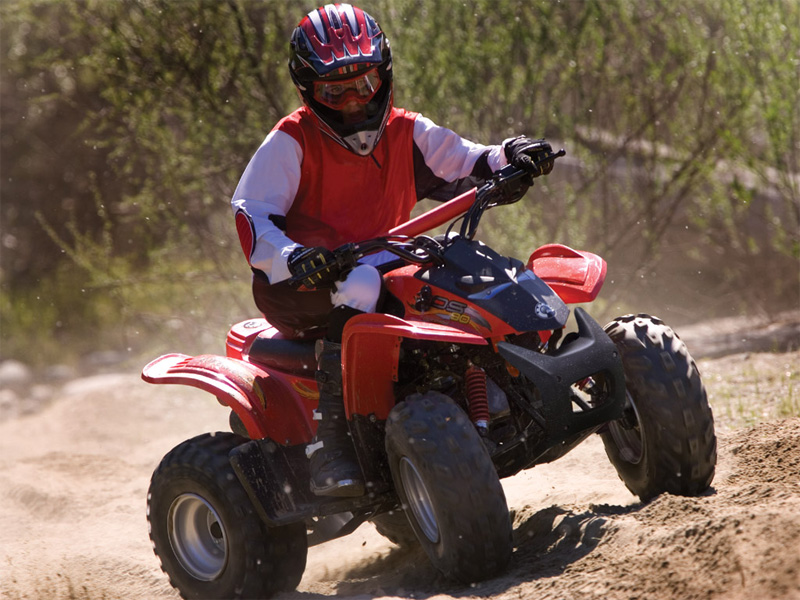

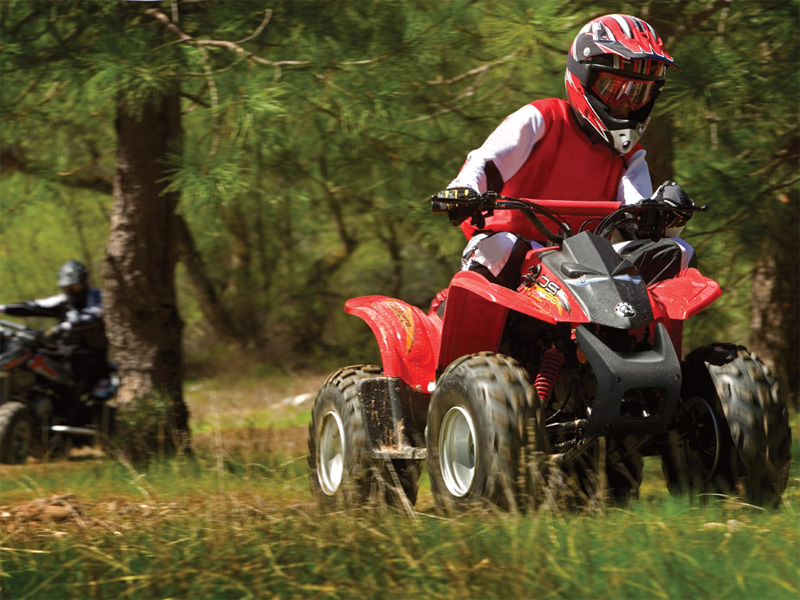

Action Shot Action Shot


DS 90 4-Stroke Specifications

Features


Available Colors: Viper Red

Engine

Type: 90cc, 4-stroke, single, forced-air cooled

Bore & Stroke 50 x 41 mm

Carburetion/EFI: Carburation, Mukini VM-16

Starting System: Electric & pull start

Transmission: Semi-automatic, 4 speed

Drive Train: Chain driven/solid axle

Chassis

Frame: DS 90

Front Suspension
Type:

Independant A-arm

Front Suspension
Travel:
1.38 in (35 mm)

Rear Suspension
Type:
Single shock

Rear Suspension
Travel:
2 in (50 mm)

Front Brake: Double drum

Rear Break: Drum

Front Tires:
20 x 7 x 8 in (508 x 178 x 203 mm)

Back Tires:
19 x 8 x 8 in (483 x 203 x 203 mm)

Dimensions

L x W x H in: 60 x 35 x 35.4 in

L x W x H meter:
(1,525 x 890 x 900 mm)

Wheelbase: 38 in (955 mm)

Dry Weight:
264 lb. (120 kg)

Ground
Clearance:
8.3 in. (210 mm)

Seat Height: 27.6 in (700 mm)

Fuel Capacity: 1.3 US gal. (5 L)
