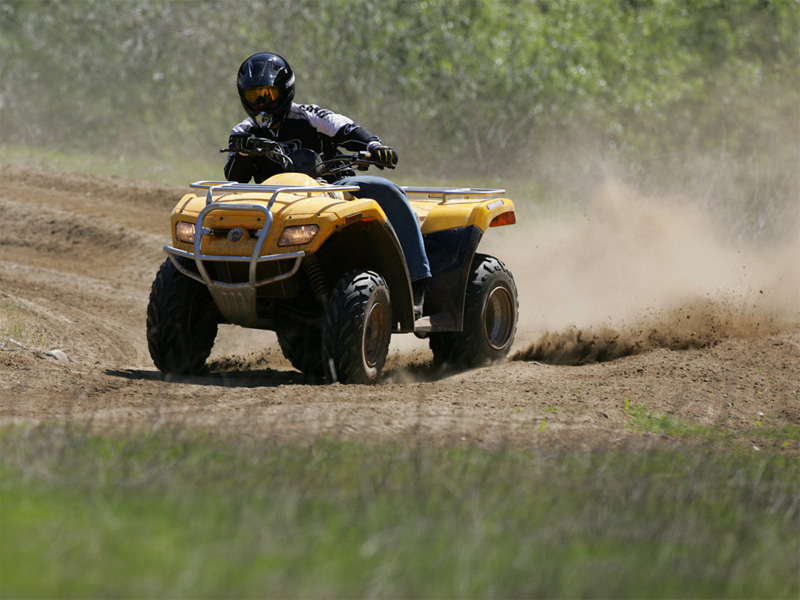

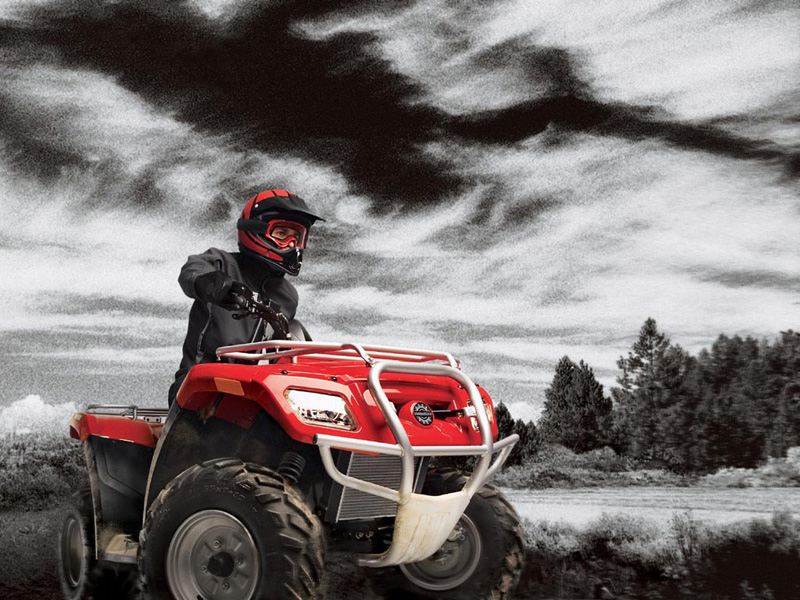

"There is nothing about the Rally that would stop us from buying one; in fact, it has turned out to be our favorite 200cc-class machine." ATV Illustrated "The firm's engineers decided to revolutionize the industry by introducing a totally new concept to create an impact which will make waves in the market" ATV Rider Rotax liquid cooled 4-stroke engine (the only liquid cooled engine in the category) SST frame Continuous Variable Transmission (CVT) with engine breaking Full floorboards Easy access service points Full coverage metal bumper Adjustable preload suspensions Hydraulic brakes Rally Specifications
Features

Instrumentation:	Indicator lamps

Lighting:	2 fender mounted headlamps (30W) with tail light / brake light

Available Colors:	Yellow, red, green

Engine

Type:	176cc, 4-stroke, single, liquid-cooled, 4-valve SOHC

Bore & Stroke	62 x 58 mm

Torque / Net Power:	14.5 Nm @ 6,500 RPM

Carburetion/EFI:	Carburetion, Mikuni VM-24

Starting System:	Electric

Transmission:	CVT, transfer with neutral & reverse

Drive Train:	Chain driven/solid axle

Chassis

Frame:	SST

Front Suspension Type:	Single A-arm

Front Suspension Travel:	5.4 in (137 mm)

Rear Suspension Type:	Swing-arm

Rear Suspension Travel:	6.4 in (163 mm)

Front Brake:	2 inboard hydraulic discs

Rear Break:	1 inboard hydraulic disc

Front Tires:	22 x 10 x 7 in (559 x 254 x 178 mm)

Back Tires:	22 x 10 x 10 in (559 x 254 x 254 mm)

Dimensions

L x W x H in:	79.8 x 41.5 x 42.1 in.

L x W x H meter:	2,026 x 1,054 x 1,070 mm

Wheelbase:	46 in (1,181 mm)

Dry Weight:	388 lb. (176 kg)

Ground Clearance:	9 in (229 mm)

Seat Height:	29.3 in. (744 mm)

Rack Capacity: (Front & Rear)	Front: 35 lbs (16 kg) Rear: 65 lbs (30 kg)

Towing Capacity:	500 lbs (227 kg)

Fuel Capacity:	4.4 US gal. (16.5 L)
