Outlander 650

The new Outlander 650 H.O. EFI - a powerful, lightweight, versatile and fully loaded four-wheeler with fun and performance as standard features.

  • TTI independent rear suspension
  • SST frame Visco-Lok auto-locking differential
  • Continiuous Variable Transmission (CVT)
  • 12 inches of ground clearance
  • Double A-arm front suspension
  • New multifunctional electronic gauge and electronic keydetails
  • New front and rear rack system with 300 lbs total capacity
  • 26" radial tires

XT model features

  • 2500 lbs Warn winch with control
  • Heavy duty front and rear steel bumpers
  • Agressive Carlisle ACT radial tires
  • Handlebar guards

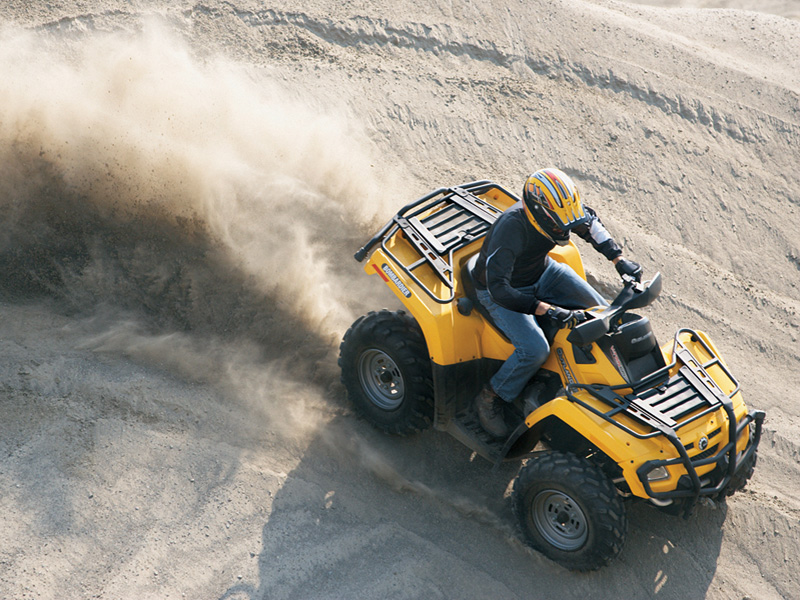

Action Shot

Outlander 650 H.O. EFI Specifications
Features

Instrumentation:

 Multi-function gauge: speedometer, odometer, tachometer,
trip and hourmeter, fuel, gear position, 4 x 4 indicator, diagnostics, auto shut off, D.E.S.S. (digital encoded security system)
Electrical: Pre wired for winch
Lighting: 2 fender mounted headlamps (35 W) w/ tail light/brake light
DC Outlet: Lighter type in console, standard connector in the back (15A)
XT Package Content
Available:		 Warn‡ 2500 CI winch, agressive tread Carlisle‡ ACT radial tires, heavy duty front & rear bumpers, handguards
Available Colors: Yellow, red, green, camo
Engine
Type: 650cc, 4-stroke, V-twin, liquid-cooled, 8-valve SOHC
Bore & Stroke 82 x 62 mm
Torque /
Net Power:		 58 Nm @ 5,500 RPM
Carburetion/EFI: EFI, 46mm Throttle Body, 2 Siemens‡ VDO injectors
Starting System: Electric
Transmission: CVT, sub-transmission with high, low, park, neutral & reverse
Drive Train: Selectable 2x4/4x4 shaft driven with Visco-Lok front differential
Chassis
Frame: SST

Front Suspension
Type:

Double A-arm, forged aluminum upper arm,
Front Suspension
Travel:		 8.0 in. (203 mm)
Rear Suspension
Type:		 TTI independent
Rear Suspension
Travel:		 9 in (229 mm)
Front Brake: 2 inboard hydraulic discs
Rear Break: 1 inboard hydraulic disc
Front Tires: 26 X 8 X 12 in. (660 x 203 x 305 mm)
Back Tires: 26 X 10 X 12 in. (660 x 254 x 305 mm)
Dimensions
L x W x H in: 86 x 46 x 45
L x W x H meter:
2.184 x 1.168 x 1.143
Wheelbase: 51 in. (1.295 m)
Dry Weight: 649 lbs. (303 kg)
Ground
Clearance: 		12 in. (305 mm)
Seat Height: 34.5 in. (877 mm)
Rack Capacity:
(Front & Rear) 		100 lbs. (45 kg), 200 lbs. (90 kg)
Towing Capacity: 1300 lbs. (590 kg)
Fuel Capacity: 5.3 US gal. (20 L)
